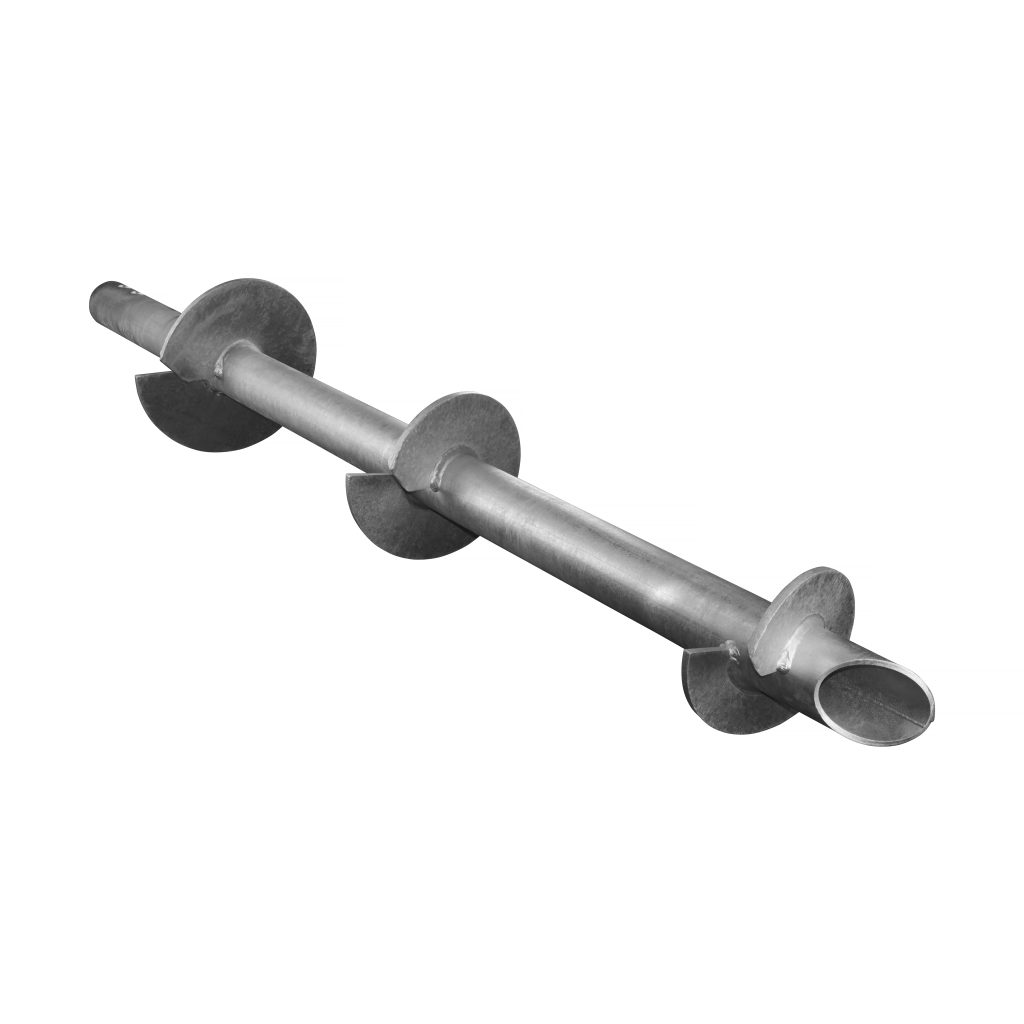

89R Triple Helix Screw-Pile (200/250/300mm Helices - 70-150kN Capacity)
Product Information
Inquire for Price
Engineered for structural loads, the 89R triple helix pile offers capacities from 70kN to 150kN, depending on soil conditions. With helix sizes measuring 200mm, 250mm, and 300mm, the 89r is designed for deep embedment, typically with a PD18 or PD25 drive head. Suitable for full house foundations, modular homes, cabins, shipping container bases, and heavy-duty extensions. Inquire for prices.
Note: All “triple helix” 89R lead piles require at least one 2m extension to ensure the top helix is a minimum of 2m below ground level.
| Tube Diameter (mm) | 88.9 | ||||
| Minimum Tube Thickness (mm) | 6.3 | ||||
| Helical Configuration (mm) | 300-250-200 (triple helices) | ||||
| Allowable Service Compression/Tension (KN) | 150.0 | ||||
| Allowable Service Horizontal LOading (KN) | 10.0 | ||||
| Installation Depth Limitation (m) | 10.0 | ||||
