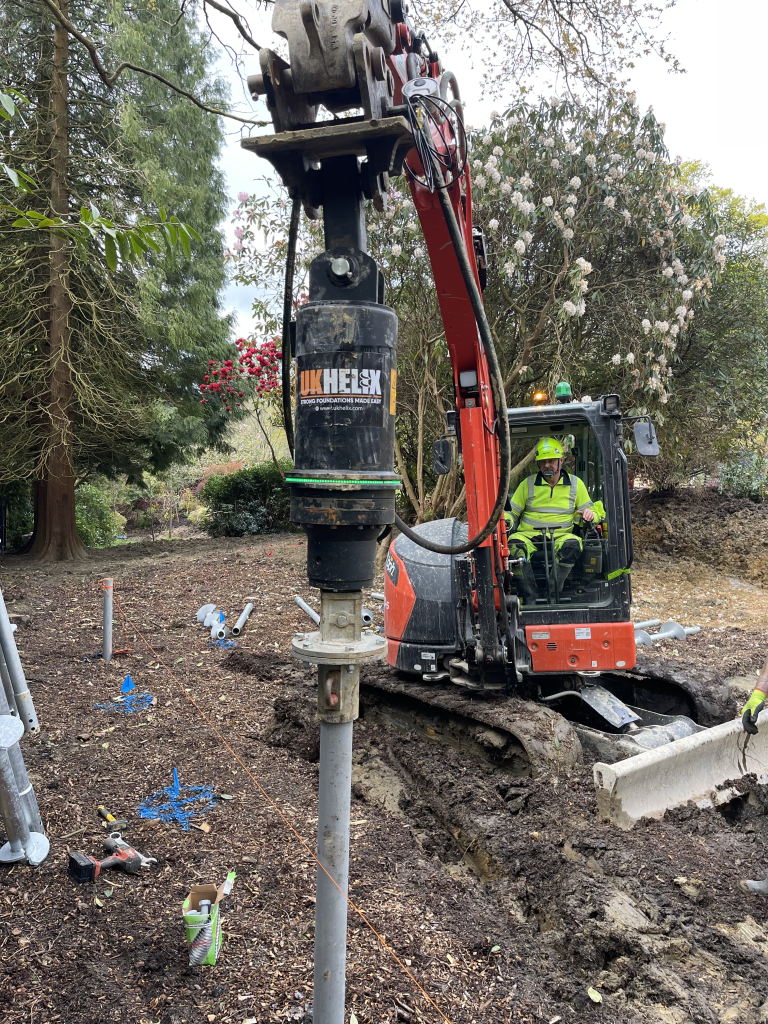

DIGGA PD18 HALO Drive Unit - For 89R Screw-Piles
Product Information
Inquire for Hire Rate
The DIGGA PD18 produces 17,630Nm, ideal for consistent 89R pile installation across a range of ground types. Designed for use with 8t excavators above, it delivers professional-level performance without jumping to a large-scale machine. A trusted choice for builders and installers working on new builds, extensions, cabins, modular bases, and light commercial frames. This units comes with HALO technology for achieving true plumb level.
Specifications:
| Machine Size Suitability | Up to 18T | ||||
| Recommended Flow | Up to 230lpm | ||||
| Maximum Torque | 17,630Nm | ||||
| Pressure Valve | Included | ||||
Build Information:
| Overall Length | 1006mm | ||||
| Diameter | 290mm | ||||
| Weight (Without Frame / Hitch) | 176kg | ||||
| Standard Output Shaft | 75mm Square | ||||
| Maximum Pressure | 240bar at 130bar | ||||
| Maximum Flow | 230lpm at 130bar | ||||
| Maximum Power | 50Kw (67hp) | ||||
| Swing Control | Optional | ||||
| Diggalign | Optional | ||||
| Halo Available | Optional | ||||
