DIGGA PD2 Drive Unit - For 60R Screw-Piles
Product Information
Inquire for Hire Rate

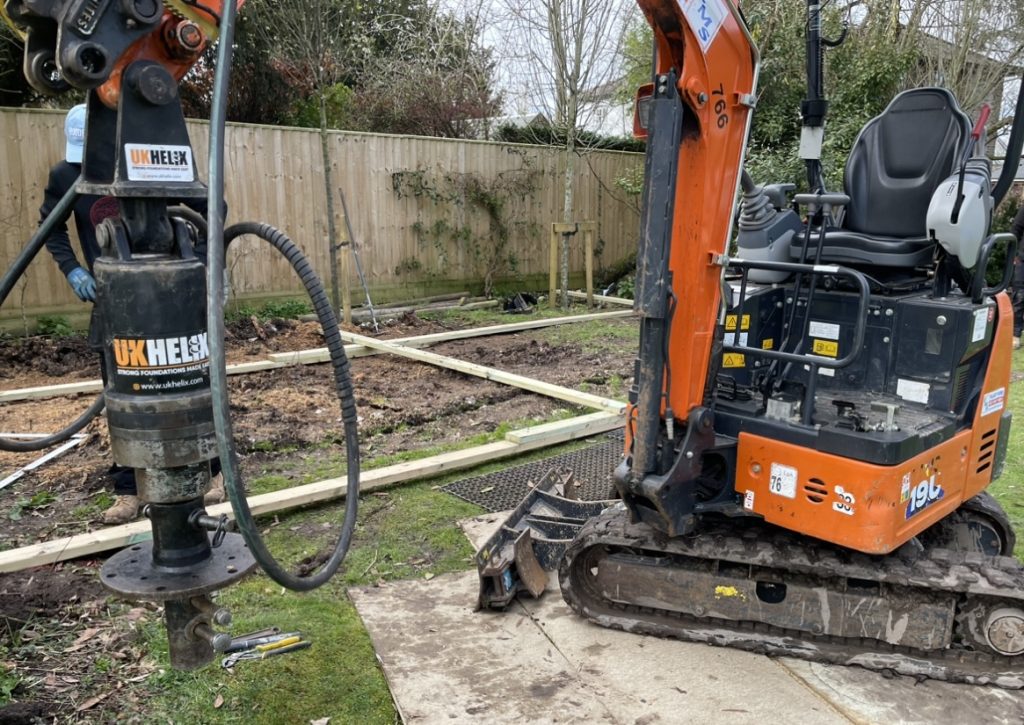

The DIGGA PD2 delivers 2,000Nm of torque at 57rpm with a hydraulic flow rate of 45LPM, making it ideal for installing 60R screw piles in light ground conditions. Compact and efficient, it suits mini excavators from 0.8 to 1.5 tonnes. A great entry-level unit for lightweight foundations, decking, and small garden rooms. Inquire for hire rate.
Specifications:
| Machine Size Suitability | Up to 2t | ||||
| Recommended Flow | 30lpm – 50lpm | ||||
| Maximum Torque | 2307Nm | ||||
| Pressure Valve | Optional | ||||
Build Information:
| Overall Length | 557mm | ||||
| Diameter | 187mm | ||||
| Weight (Without Frame / Hitch) | 45kg | ||||
| Standard Output Shaft | 65mm Round | ||||
| Energy Control Valve | Not Applicable | ||||
| Case Drain Recommended | Not Applicable | ||||
| Maximum Pressure | 240bar | ||||
| Maximum Flow | 50lpm | ||||
| Maximum Power (Combined Flow at Pressure) | 25Kw (34hp) | ||||
| Swing Control | Not Applicable | ||||
| Diggalign | Not Applicable | ||||
| Halo Available | Optional | ||||
Torque Chart (Nm):
| Pressure (Bar) | Torque (Nm) | ||||
| 120 | 1,154 | ||||
| 140 | 1,346 | ||||
| 160 | 1,538 | ||||
| 180 | 1,731 | ||||
| 200 | 1,923 | ||||
| 220 | 2,115 | ||||
| 240 | 2,307 | ||||
Speed Chart (RPM):
| Flow (LPM) | Speed (RPM) | ||||
| 30 | 50 | ||||
| 35 | 58 | ||||
| 40 | 66 | ||||
| 45 | 75 | ||||
| 50 | 83 | ||||
