PDX3 Excavator Drive Unit
Product Information
Inquire Now

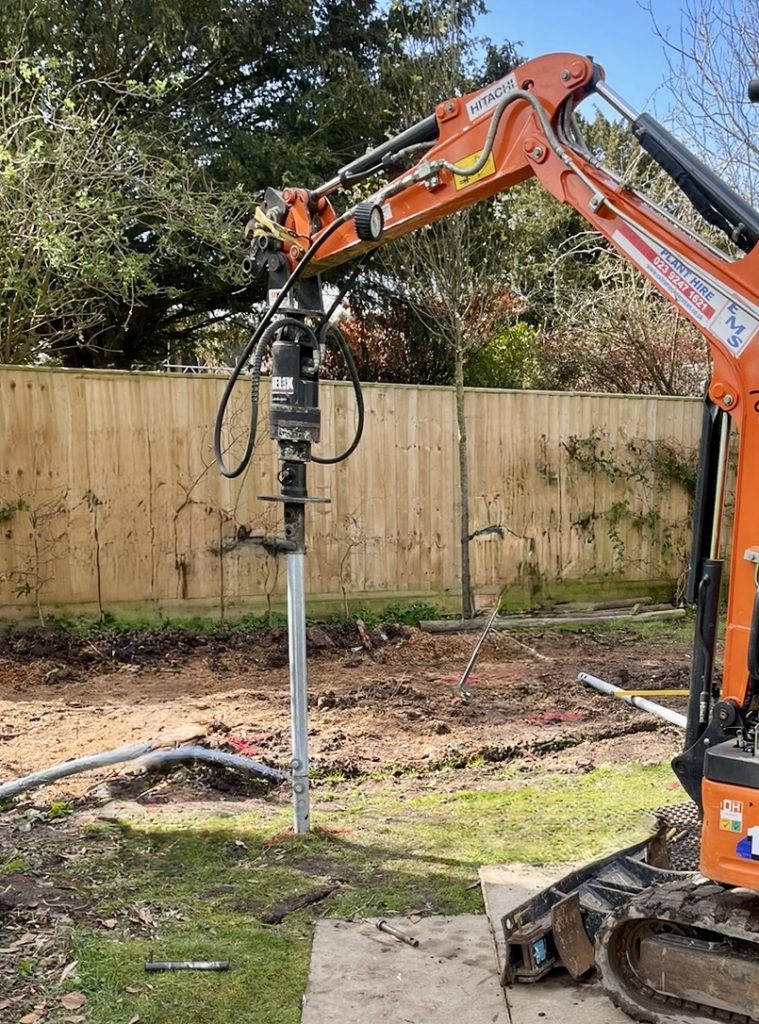

The PD3 drive unit delivers an impressive max torque of 2,831Nm (flow 30lpm – 55lpm) It installs 60R screw-piles faster and with greater power than by hand, making it ideal for tougher ground conditions and larger-structure foundations, all while mounted on a compact excavator (1—3 t). (Inquire for hire rate).
Specifications:
| Machine Size Suitability | Up to 2t | ||||
| Recommended Flow | 30lpm – 55lpm | ||||
| Maximum Torque | 2831Nm | ||||
| Pressure Valve | Optional | ||||
Build Information:
| Overall Length | 615mm | ||||
| Diameter | 187mm | ||||
| Weight (Without Frame / Hitch) | 46kg | ||||
| Standard Output Shaft | 65mm Round | ||||
| Energy Control Valve | Not Applicable | ||||
| Case Drain Recommended | Not Applicable | ||||
| Maximum Pressure | 240bar | ||||
| Maximum Flow | 55lpm | ||||
| Maximum Power (Combined Flow at Pressure) | 25Kw (34hp) | ||||
| Swing Control | Not Applicable | ||||
| Diggalign | Not Applicable | ||||
| Halo Available | Optional | ||||
